Circular Lemo Push Pull Connector EEG 2B 4Pin Female Socket EEG.2B.304.CLL

Name: Circular Lemo Push Pull Connector EEG 2B 4Pin Female Socket EEG.2B.304.CLL
Brand: Ebuddy Technology Co.,Limited
SKU: EEG.2B.304.CLL
Price: 6.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	EEG.2B.304.CLL
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

EEG PCB

Size:

Lemo 2B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

Circular 2B lemo push pull connector

4Pin Female lemo push pull connector

PPS Insulator lemo 2b connector

Product Description

Circular Lemo Push Pull Connector EEG 2B 4Pin Female Socket EEG.2B.304.CLL

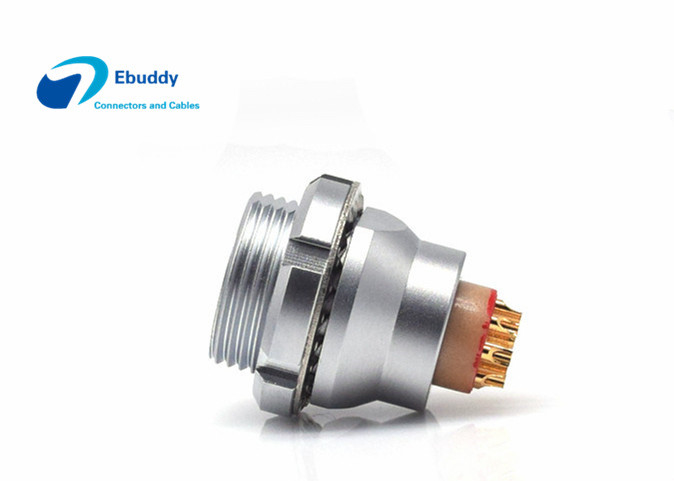

Rear panel socket Lemo push pull circular connectors EEG 2B 4Pin female socket EEG.2B.304.CLL

Product Specifications

Shell Style/Model	EE*: Fixed receptacle, nut fixing
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

Performance Details

Insert	2B.304 : 4 Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Female solder
Max. Matings	5000
Contact Dia	1.3 mm (0.051in)
Bucket Dia	1.0 mm (0.039in)
Max. Solid Conductor	0.56 mm² (AWG 20)
Max. Stranded Conductor	0.56 mm² (AWG 20)
R (max)	3.6mOhm
Vtest (AC)	2000 V
Rated Current	15A

Size Drawing

Warranty Policy

1 year warranty time for all our connectors and cables. Any problems during warranty period:

We will fix it or replace with a new unit
We will bear both sides shipping cost

Why Choose Ebuddy

Complete compatibility with Lemo/ODU/Fischer connectors with lower cost
ROHS, ISO9001:2008, UL standard compliance
Short delivery time: 7-10 days normally
Factory production capacity: 5000 sets/week
Samples available for inspection prior to order

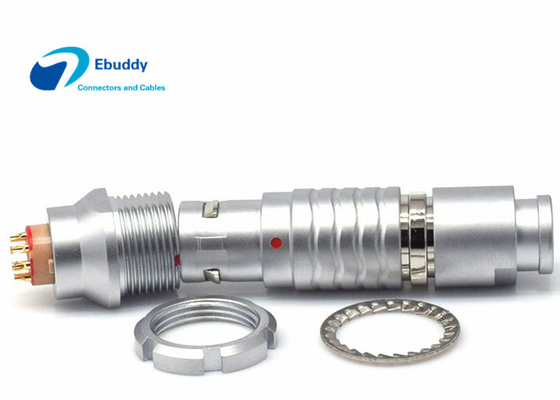

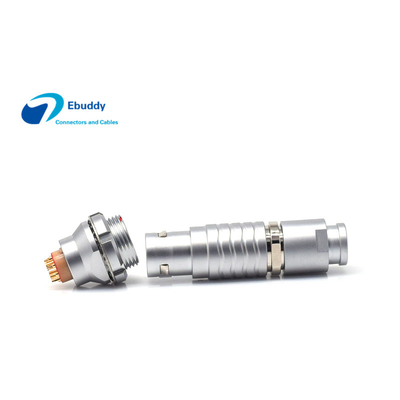

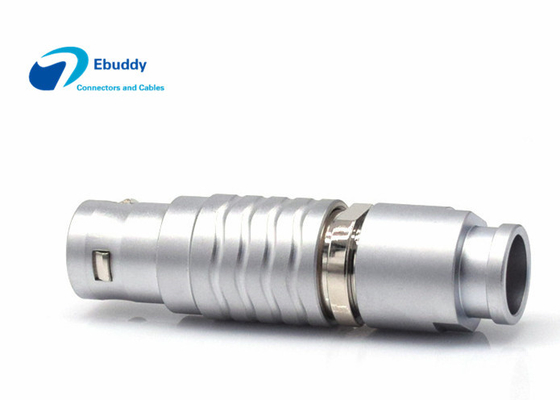

Product Images
