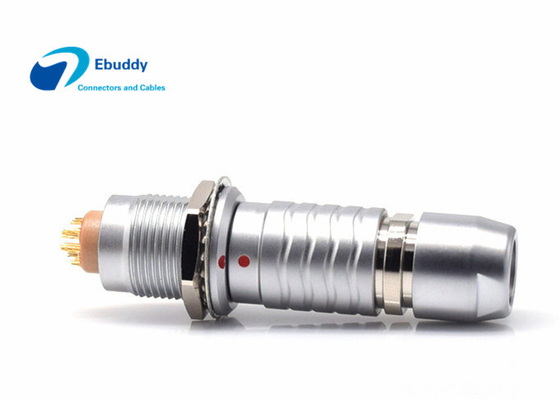

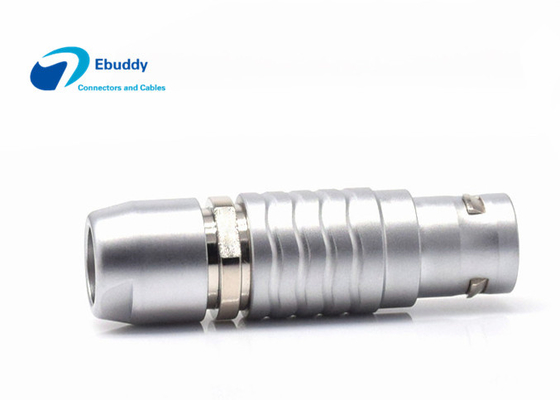

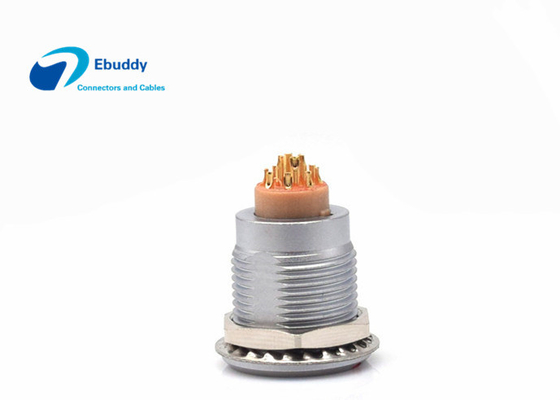

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket

Name: 2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket
Brand: Ebuddy Technology Co.,Limited
SKU: FGG.2B.314/EGG.2B.314
Price: 6.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FGG.2B.314/EGG.2B.314
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

FGG/EGG

Size:

Lemo 2B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

Female solder Push Pull Circular Connectors

FGG EGG Push Pull Circular Connectors

EGG 2B circular cable connectors

Product Description

2B 14pin circular cable connetcors Lemo push pull FGG EGG 2B 314 plug and socket for industry equipment

Description:

Shell Style/Model	EG*: Fixed receptacle, nut fixing
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

PERFORMANCE DETAILS
Insert	2B.314 : 4Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Female solder
Max. Matings	5000
Contact Dia	0.7 mm (0.028in)
Bucket Dia	0.8 mm (0.031in)
Max. Solid Conductor	0.34 mm^2 (AWG 22)
Max. Stranded Conductor	0.34 mm^2 (AWG 22)
R (max)	6.1mOhm
Vtest (AC)	1500 V
Rated Current	6.5A

Size Drawing:

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 0

Warranty Policy: 1year warranty time:

For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

1. we will fix it or replace new brand one
2. We will bear both sides shipping cost.

Why choose Ebuddy:

Complete compatible with lemo/odu/fischer/ connector with lower cost
ROHS,ISO9001:2008,UL standard
Short delivery time:7-10 days normally
Factory can produce 5000 set/week
Samples offer to check first

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 1

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 2

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 3

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 4

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 5

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 6

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 7

2B 14pin Circular Cable Connetcors Lemo Push Pull FGG EGG 2B 314 Plug / Socket 8
