Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Push Pull Circular Connectors
Created with Pixso. PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL
Name
  • Name
  • Name
  • Name
  • Name

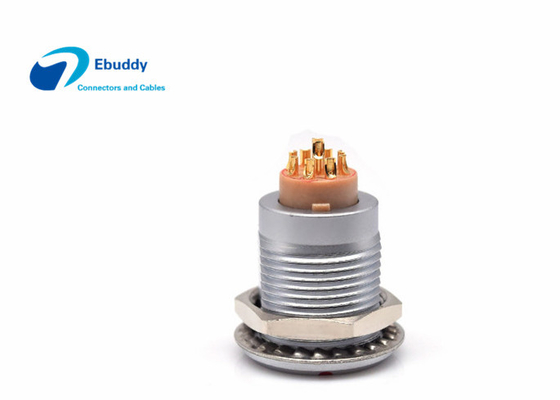

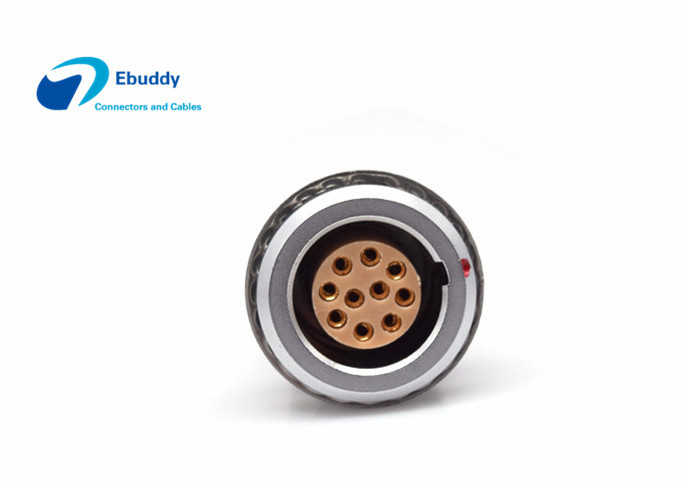

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL

Brand Name: Ebuddy
Model Number: EGG.2B.310
MOQ: 1
Price: Negotiable
Payment Terms: Western Union, T/T，Paypal
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE.ROHS
Insulator:
PPS
Series:
FGG/EGG
Size:
Lemo 2B
Shock Resistance:
100g.6ms
Max. Matings: 5000:
5000
IP Rating:
IP50
Resiatance To Vibration:
10-20000Hz, 15g
Warranty Time:
1 Year
Packaging Details:
pp pag
Supply Ability:
10000pcs per month
Highlight:

PPS Insulator EGG receptacle

,

Lemo 2B EGG receptacle

,

EGG.2B.310.CLL

Product Description

Lemo alternative EGG 10pin female receptacle 10pin 2B PCB socket EGG.2B.310.CLL



Description:



​

Shell Style/Model EG*: Fixed receptacle, nut fixing
Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces


PERFORMANCE DETAILS
Insert 2B.310 : 10Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Female solder
Max. Matings 5000
Contact Dia 0.9 mm (0.035in)
Bucket Dia 0.8 mm (0.031in)
Max. Solid Conductor 0.34 mm^2 (AWG 22)
Max. Stranded Conductor 0.34 mm^2 (AWG 22)
R (max) 4.8mOhm
Vtest (AC) 1600 V
Rated Current 8A




Size Drawing:



PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 0





Warranty Policy: 1year warranty time​:




For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

1. we will fix it or replace new brand one
2. We will bear both sides shipping cost.



Why choose Ebuddy:



  • Complete compatible with lemo/odu/fischer/ connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first



PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 1

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 2

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 3

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 4

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 5

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 6

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 7



PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 8

PPS Insulator Female EGG Receptacle Lemo 2B 10pin PCB Socket EGG.2B.310.CLL 9
