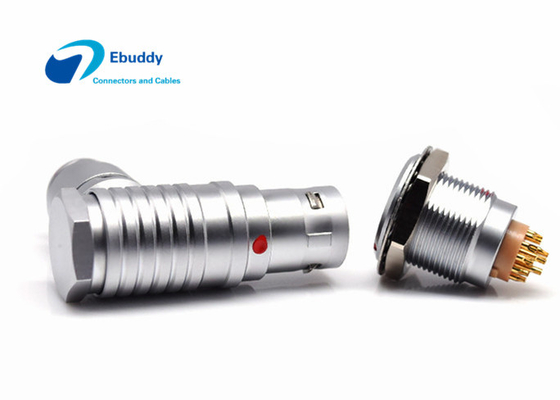

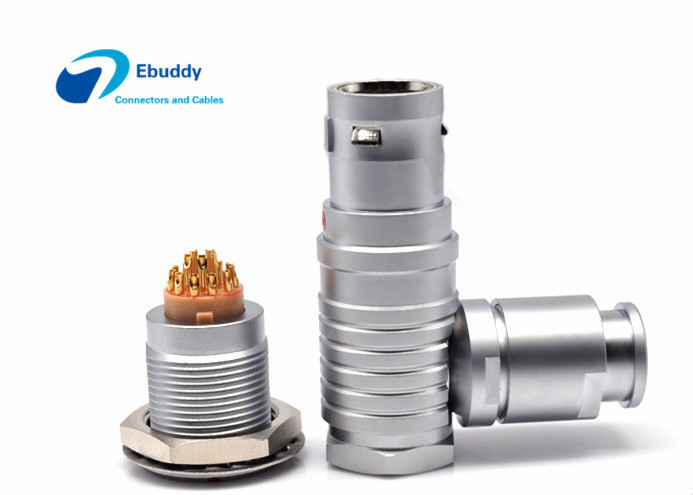

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318

1
MOQ
Negotiable
Price
Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318
Features Gallery Product Description Request A Quote
Features
Specifications
Insulator: PPS
Series: FHG
Size: Lemo 3B
Shock Resistance: 100g.6ms
Max. Matings: 5000: 5000
IP Rating: IP50
Resiatance To Vibration: 10-20000Hz, 15g
Warranty Time: 1 Year
High Light:

solder Contact Push Pull Circular Connectors

,

circular cable connectors IP50

,

3B 18pin circular cable connectors

Basic Infomation
Place of Origin: China
Brand Name: Ebuddy
Certification: CE.ROHS
Model Number: FHG.3B.318
Payment & Shipping Terms
Packaging Details: pp pag
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 10000pcs per month
Product Description

Lemo circular cable connector elbow 3B 18pin male and female connector FHG.3B.318/EGG.3B.318



Description:

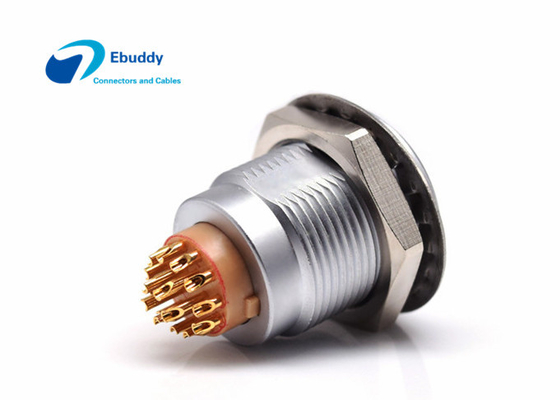

Shell Style/Model FHG: Fixed receptacle, nut fixing
Keying 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces



PERFORMANCE DETAILS
Insert 3B.318 : 18Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type solder
Max. Matings 5000
Contact Dia 0.9 mm (0.035in)
Bucket Dia 0.8 mm (0.031in)
Max. Solid Conductor 0.34 mm^2 (AWG 22)
Max. Stranded Conductor 0.34 mm^2 (AWG 22)
R (max) 4.8mOhm
Vtest (AC) 1400 V
Rated Current 7A




Size Drawing:



Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 0

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 1





Warranty Policy: 1year warranty time​:




For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

1. we will fix it or replace new brand one
2. We will bear both sides shipping cost.



Why choose Ebuddy:



  • Complete compatible with lemo/odu/fischer/hirose connector with lower cost
  • ROHS,ISO9001:2008,UL standard
  • Short delivery time:7-10 days normally
  • Factory can produce 5000 set/week
  • Samples offer to check first



Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 2

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 3

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 4

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 5

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 6

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 7

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 8



Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 9

Lemo Circular Cable Connectors Elbow 3B 18pin Male Female Connector FHG.3B.318 EGG.3B.318 10
