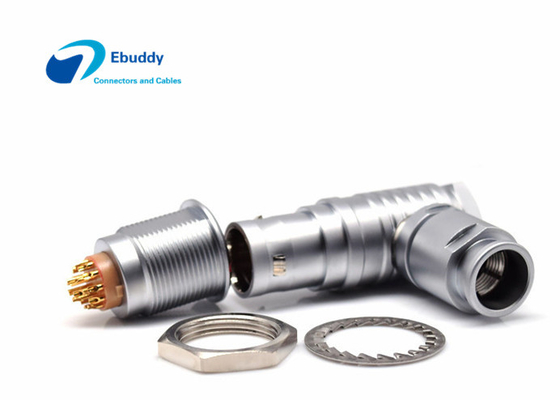

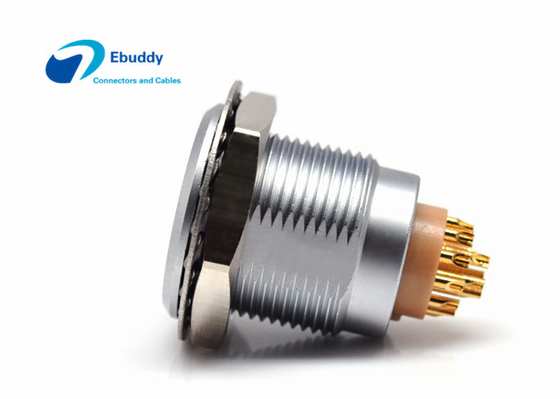

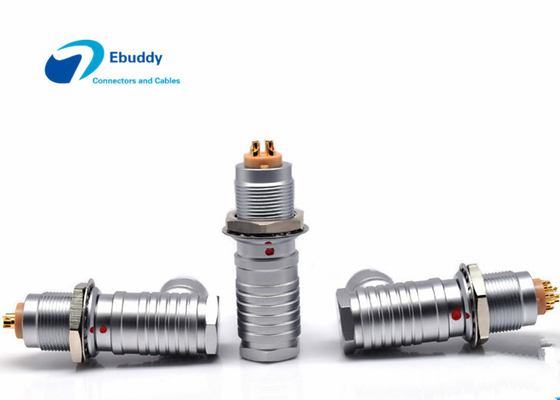

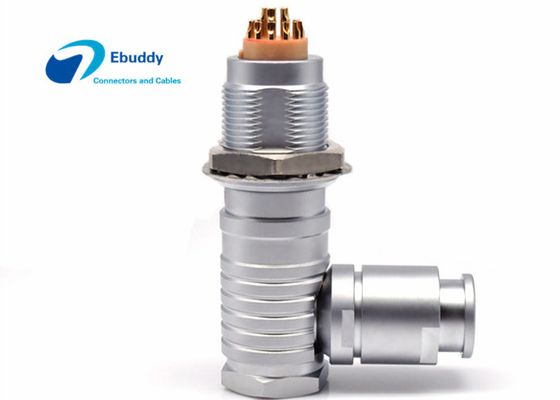

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316

Name: 3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316
Brand: Ebuddy Technology Co.,Limited
SKU: FHG.3B.316
Price: 6.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	FHG.3B.316
MOQ:	1
Price:	Negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Insulator:

PPS

Series:

FHG

Size:

Lemo 3B

Shock Resistance:

100g.6ms

Max. Matings: 5000:

5000

IP Rating:

IP50

Resiatance To Vibration:

10-20000Hz, 15g

Warranty Time:

1 Year

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

Lemo 3B circular cable connectors

FHG Metal circular cable connectors

PPS Insulator circular cable connectors

Product Description

3B 16pin metal circular right angle plug Lemo FHG Elbow male cable connector FHG.3B.316

Description:

Shell Style/Model	FHG: Fixed receptacle, nut fixing
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

PERFORMANCE DETAILS
Insert	3B.316 : 16Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	solder
Max. Matings	5000
Contact Dia	0.9 mm (0.035in)
Bucket Dia	0.8 mm (0.031in)
Max. Solid Conductor	0.34 mm^2 (AWG 22)
Max. Stranded Conductor	0.34 mm^2 (AWG 22)
R (max)	4.8mOhm
Vtest (AC)	1200 V
Rated Current	8A

Size Drawing:

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 0

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 1

Warranty Policy: 1year warranty time:

For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

1. we will fix it or replace new brand one
2. We will bear both sides shipping cost.

Why choose Ebuddy:

Complete compatible with lemo/odu/fischer/ connector with lower cost
ROHS,ISO9001:2008,UL standard
Short delivery time:7-10 days normally
Factory can produce 5000 set/week
Samples offer to check first

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 2

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 3

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 4

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 5

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 6

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 7

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 8

3B 16pin Metal Circular Cable Connectors Lemo FHG Elbow Male Cable Connector FHG.3B.316 9
