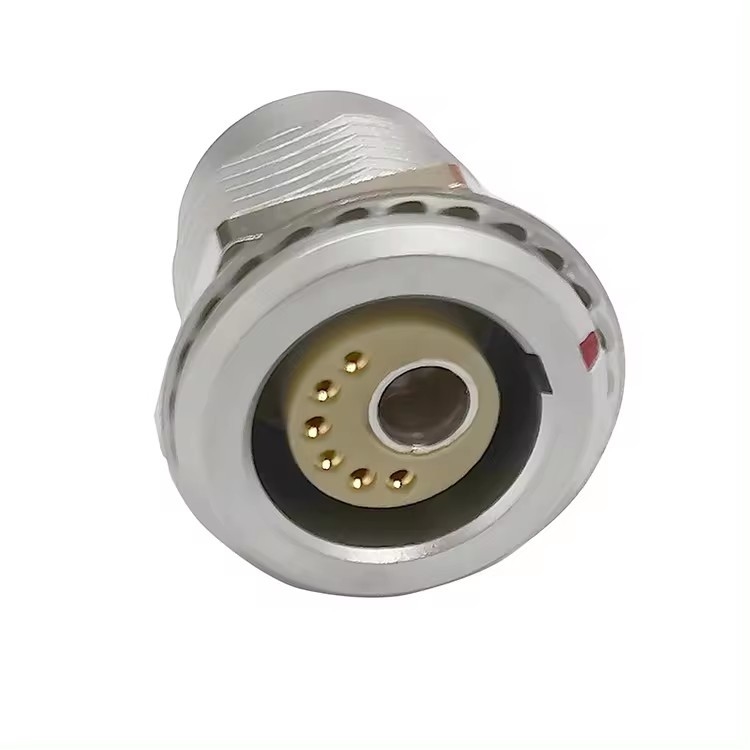

Part no.
|
EGG.2B.6+1.CLL
|
|
Title.
|
6 +1 metal Female
|
|
Spec.
|
2B
|
|
Series
|
2B
|
|
Mechanical Details:
|
|
|

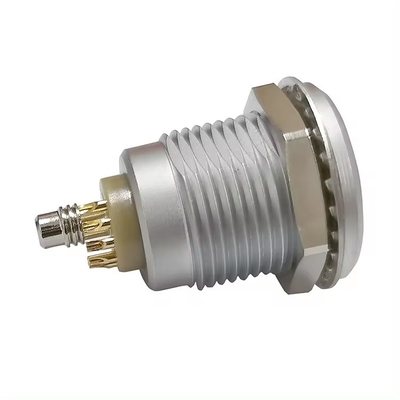

Shell Style
|
Fixed receptacle,nut fixing
|
|
Key
|
1 key(alpha=0°；plug: male contacts, receptacle:female contacts)
|
|
Housing material
|
Brass(Chrome plated)shell and collet nut;Brass
(Nickel plated)latch sleeve and mid pieces
|
|
Housing color
|
Grey-White,
|
|
Endurance
|
5000 mating cycles
|
|
Operation temp.(min)
|
-40℃
|
|
Operation temp.(max)
|
200℃
|
|
Humidity(max)
|
<=95%(at 60℃/140F)
|
|
IP Rating
|
IP 50
|
|
Electronic Details:
|
|
|
Insert
|
6 Low Voltage
|
|
Configuration
|
Brass gold plated
|
|
Insulator material
|
PPS
|
|
Contact type
|
Solder
|
|
Max matings
|
5000
|
|
Salt spray corrosion
|
>72 hr
|
|
Shielding
|
75dB(10M Hz)
|
|
Shielding
|
40dB(1G Hz)
|
|
Contact Dia
|
Φ0.7mm
|
|
Solder Dia
|
Φ1.2mm
|
|
Max contact R
|
6.5mΩ
|
|
Voltage(contact-shell)
|
AC 1350V
|
|
Voltage(contact-contact)
|
AC 1250V
|
|
Rated Current
|
7A(AC/DC)
|
