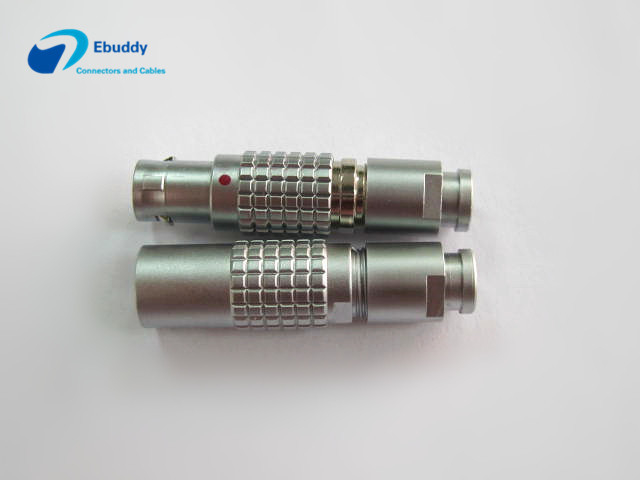

Push Pull Circular Connector 2pin Lemo Cable Connector FGG 2B Size

Name: Push Pull Circular Connector 2pin Lemo Cable Connector FGG 2B Size
Brand: Ebuddy Technology Co.,Limited
SKU: HGG.2B.302.CLAD
Price: 6.00 USD
Availability: InStock

Brand Name:	Ebuddy
Model Number:	HGG.2B.302.CLAD
MOQ:	1
Price:	negotiable
Payment Terms:	Western Union, T/T，Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ROHS

Pin No:

2-32pin/Multi Pin

Specifications:

Low Voltage

Housing Material:

Brass (chrome Plated) Shell

Rated Current:

25A

Endurance (Shell):

5000 Mating Cycles

IP Rating:

IP50

Humidity (max):

<=95% [at 60 Deg C / 140 F]

Configuration:

Brass (gold Plated)

Packaging Details:

pp pag

Supply Ability:

10000pcs per month

Highlight:

industrial circular connectors

micro circular connectors

2pin Lemo Push Pull Circular Connector

Product Description

Push Pull Circular Connector 2pin Lemo Cable Connector FGG 2B Size

High-quality 2-pin push pull circular cable connector designed for reliable performance and easy installation.

Product Features

2-pin push pull circular cable connector
Premium quality construction for easy locking and mating
Available in 2-32 pin configurations with multi-core options
100% compatible with original Lemo connectors
Male plug, soldering type for cable welding
Cable collet diameter: 2.6mm-7.0mm
Sleeve colors: Black, Red, Blue, White, Yellow, Green
IP50 rated for dust protection

Cable Collet Size Options

Collet No.	Cable OD Type	Coding	Max (mm)	Min (mm)
1B	M	31	3	2.6
D	42	4.0	3.1
D	52	5.0	4.1
D	62	6.0	5.1
D	72	7.0	6.1

Technical Specifications

Endurance (Shell): 5000 mating cycles

Temperature Range: -20°C to +150°C

Maximum Humidity: ≤95% at 60°C / 140°F

IP Rating: IP50

Benefits of Compatible Connectors

100% compatible with Lemo connector systems
Cost savings of at least 30% compared to original parts
Cable assembly services available to save production time

Colorful Sleeve Specifications

Material: Polyurethane (PU)

Temperature Range: -40°C to +80°C

Colors: Black, Red, Blue, White, Yellow, Green

Sizes: 00B/0B/1B/2B, 0K/1K/2K

Cable OD Range: 3.1mm to 8.2mm

Size and Technical Drawings
